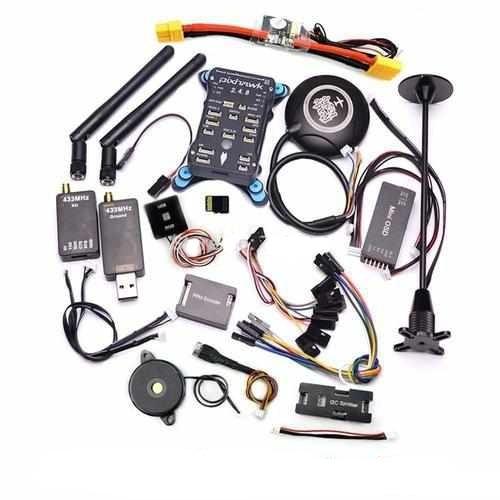

Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller

Features:

1. The advanced 32-bit ARM CortexM4 high-performance processors, can run NuttX RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

Specifications:

​

Microprocessor

1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit

2. frequency: 168MHZ, 256K RAM

3.32 STM32F103 backup coprocessor

Sensor

1.L3GD20 3-axis digital gyroscope 16

2.LSM303D 3-axis accelerometer 14 / Magnetometer

3.MPU6000 6-axis accelerometer / magnetometer

4.MS5611 precision barometer

Interface

1 .5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External MICRO USB Interface
