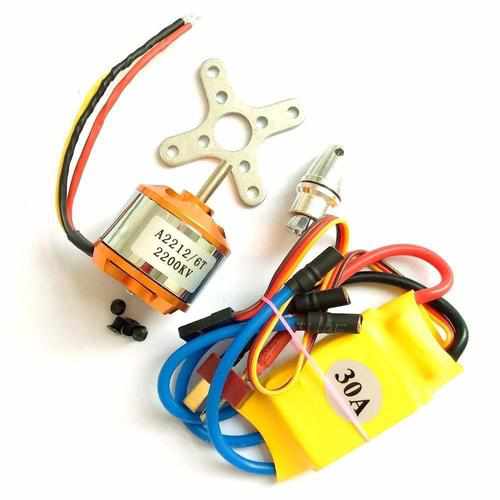

Motor:
Rpm/V : 2200KV
Weight :47g
Motor Dimensions :27.5mm*30mm
Shaft Size:3.17mm
Battery Opernating :2-3 Lipo
Current :1.4 A
Peak.Amps :14-22 A
ESC:
ltems :30A
Weight :23g
Dimensions:45.0*24.0*9.0mm
Current(A):30-40
BEC :3A
PWM:N/A
Li-Po :2-3
Ni-Mh/Ni-cd :4-10Ni-Mh
Constant current 30A Max 40A <10s
Li-Poly 2-3 cells; Ni-MH 4-10 cells Auto Detect
Break On/Off;
Auto Low battery Slow down at 3.0V/cell Lipo, cut-off at 2.9V/cell Lipo
Note: Timing and PWM can be programmable if required. Currently we just want to keep this product simple and easy to use for Beginners.
According to our experience Too complex of the small ESCs only make more trouble and need more effort of supporting.
Packet content:
100% Brand New
1 x 30A Brushless ESC
1*2200KV motor
